SUMMARY
Let us introduce our membrane structure business responsible for beauty and durability of the exterior.
Tension Membrane Structure is a resistance large space structure that is allowed to convey force with its own tensile force by causing initial tension using large space structural system coated fabric as a major material. Using the tensile force to the membrane, the structure applies stiffness into the exterior and keeps external loads stable.
Unconstrained Curves for Large Spatial Creation
As this membrane structure architecture is able to create various types of large spaces, it has been recognized as a suitable large space structure for varied types and purposes due to its translucency, economics, and construction superiority as the material possible to show unconstrained curves and lighten structures. Also, compared to the existing structures, these structures are well-known to be much more stable and durable.

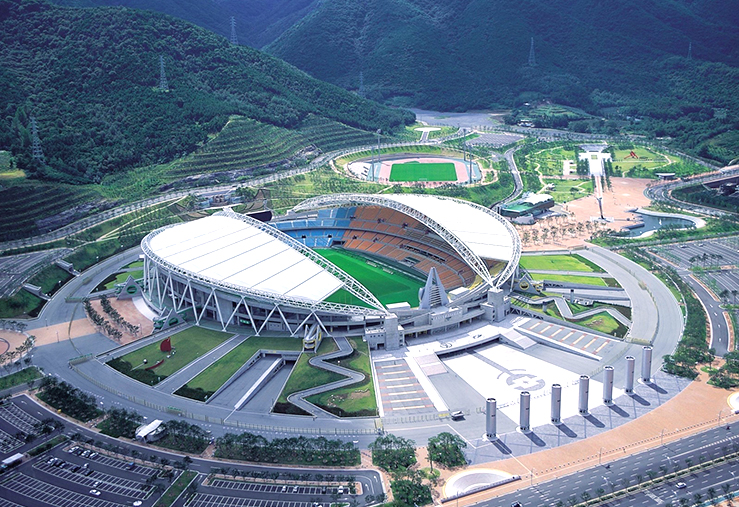

Therefore, membrane structures have been constructed for many spaces such as large-scale stadiums, indoor stadiums, and structures in large public spaces. Moreover, there has been a gradual increase in applications of the membrane structures into outdoor auditoriums, exhibition halls, symbolic sculptures, and more due to its unimpeded curve design.
Features of tension membrane structure
As large spatial structures, tension membrane structures are an economic structural system with high constructability because they can lighten loads.
*They reduce loads of steel structures up to 15 or 20% from 30 or 50kg of dead- and live-load steel plates to 5kg of membrane structures.
Features of tension membrane structure

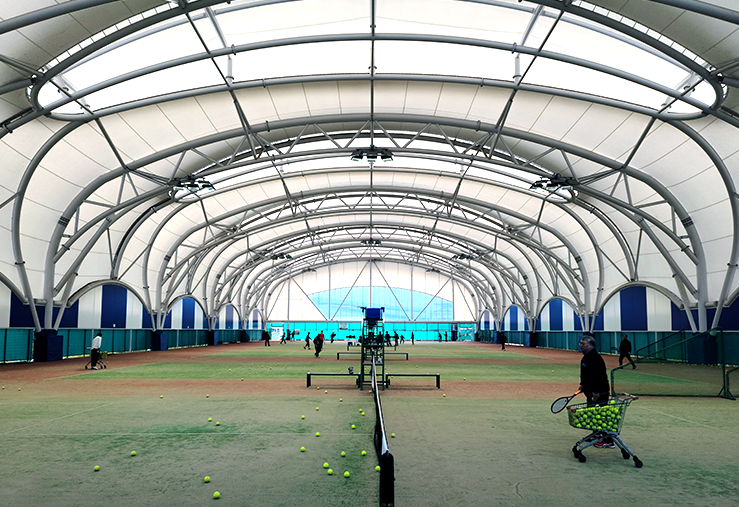

Tension membrane structures keep indoor spaces pleasant because 12 ~ 18% of natural light is transmitted to them.
PTFE(glass fiber teflon)
– Sun Light 10,000 LUX
Sun Light 10,000 LUX
* Tennis Game - 10,000 LUX
* International Tennis Game - 12,000 LUX
Features of tension membrane structure

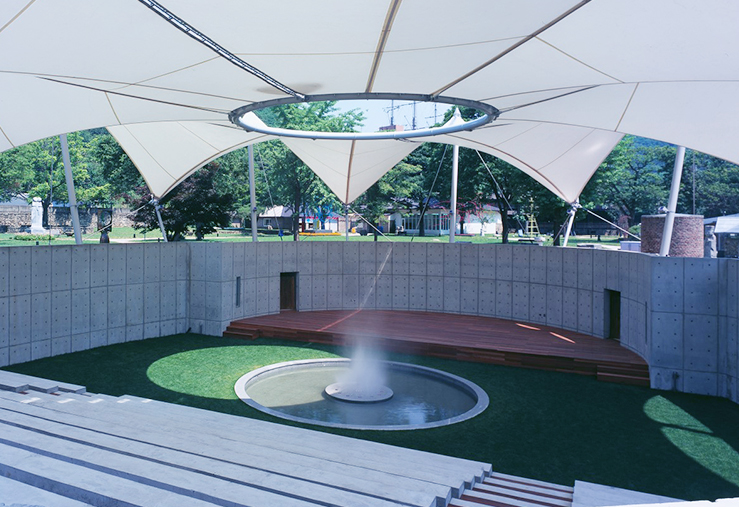

Tension membrane structures are possible to create unconstrained spaces and provide the gorgeous and graceful exterior.
- Express unconstrained non-linear curves and create large spatial structures based on their own economics and functionality improved by using materials that try to lighten aesthetically valuable buildings
Features of tension membrane structure

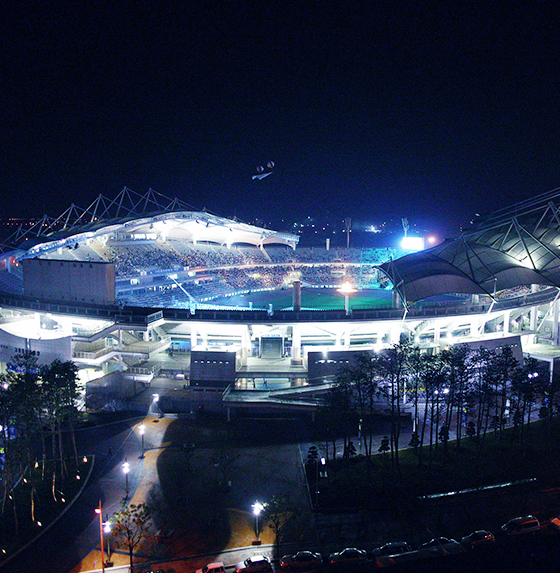

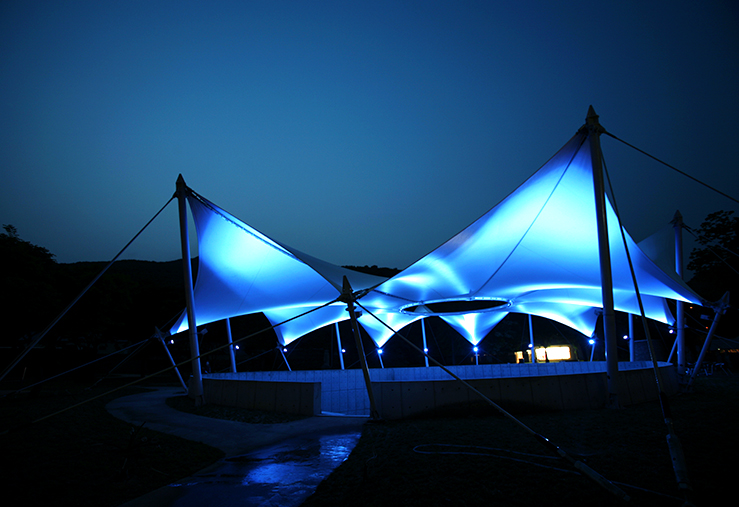

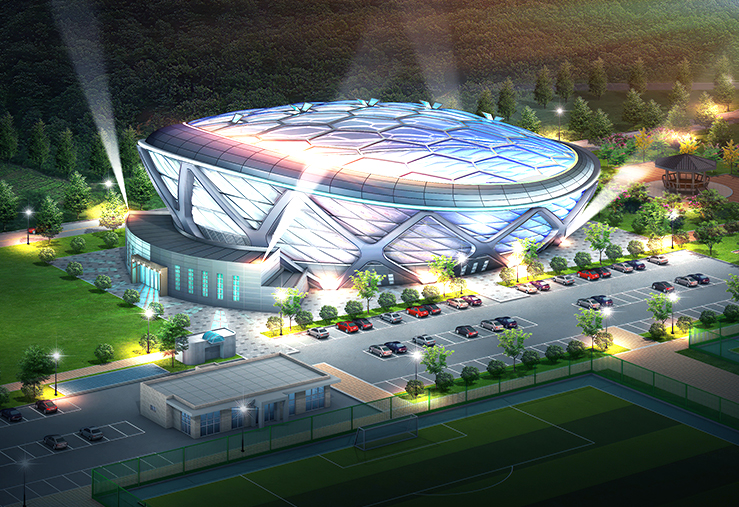

Tension membrane structures look so mysterious enough to remind you of a large concert hall when night outdoor lighting is on.
Features of tension membrane structure
Tension membrane structures are semi-permanently available for more than 20 or 30 years due to their economic life expectancy. Also, they are favorable to reduce the term of works due to a short period of construction.
Applications of Tension Membrane Structure

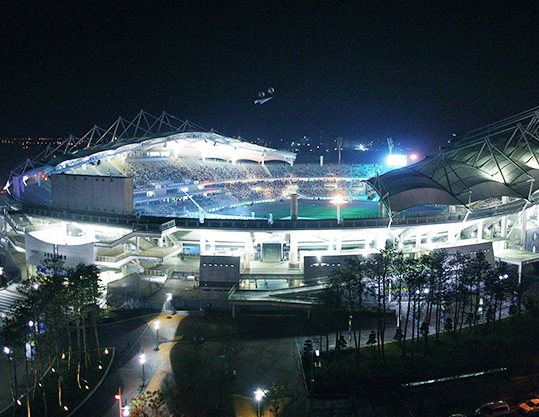

- SPORTS
-

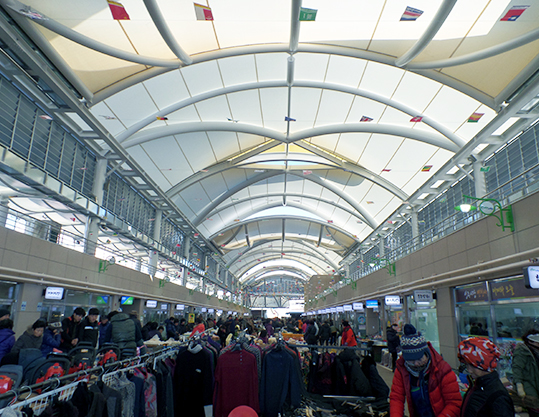

- COMMERCE
-

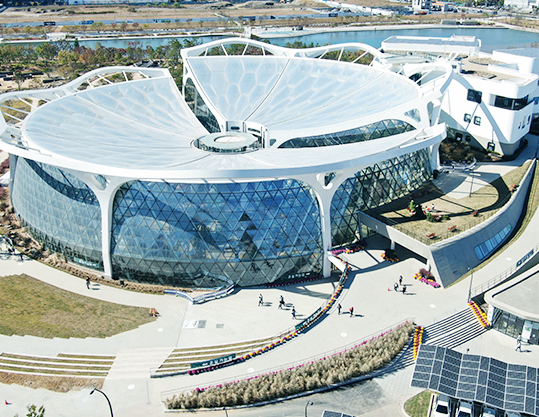

- CULTURE / EXHIBITION
-

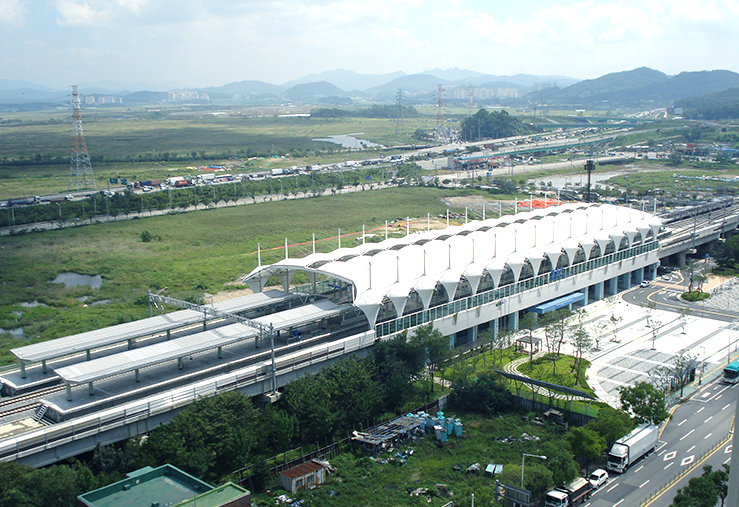

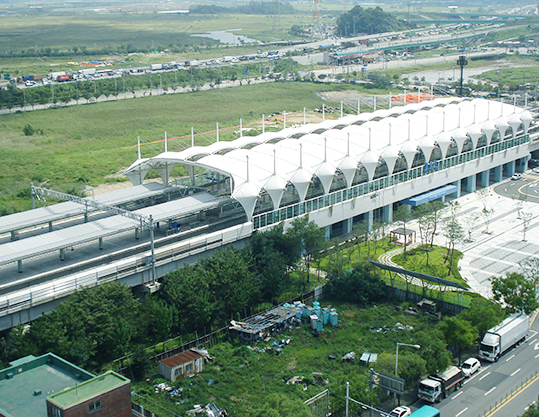

- TRANSPORT / OUTDOOR
-
